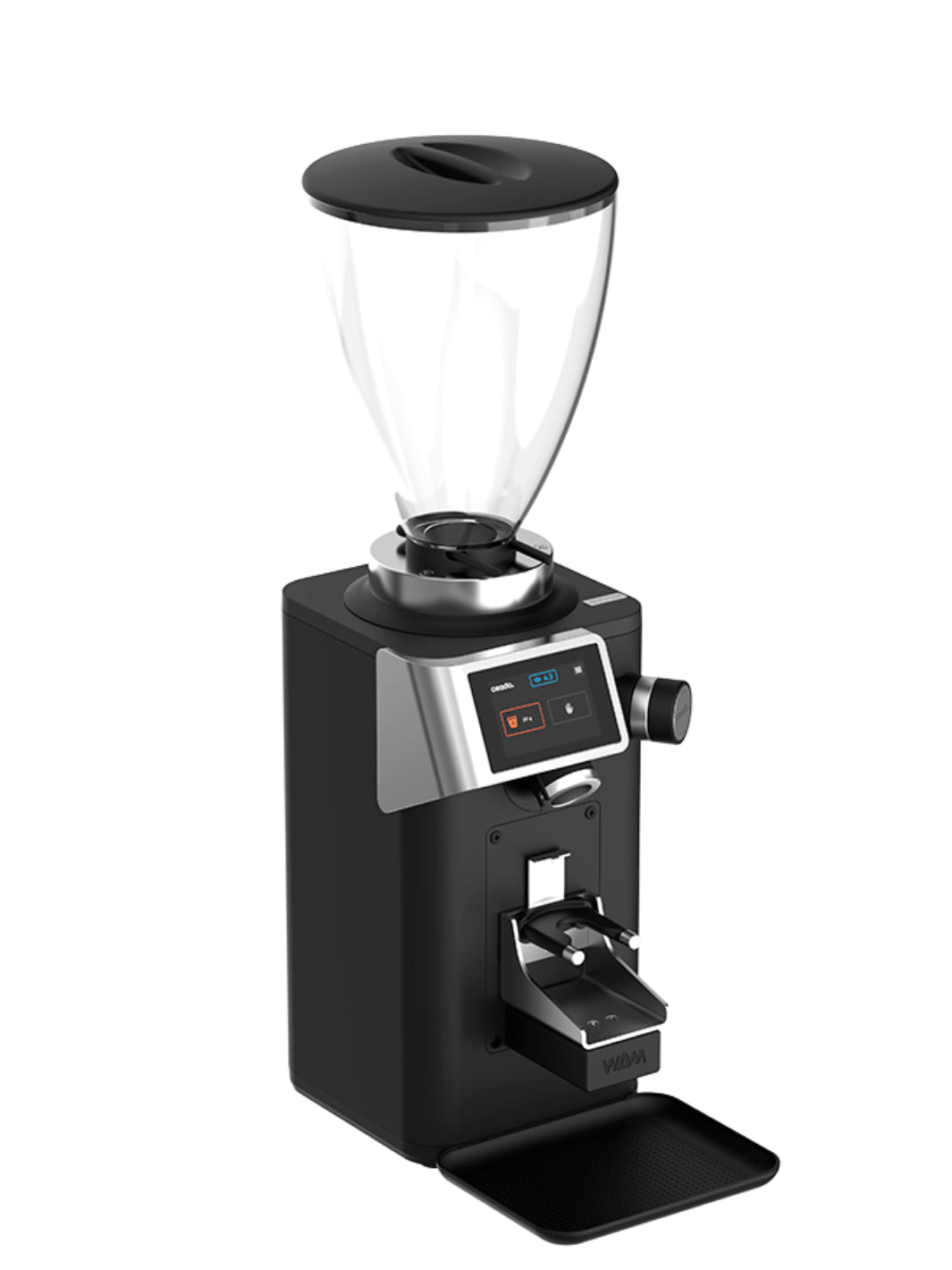

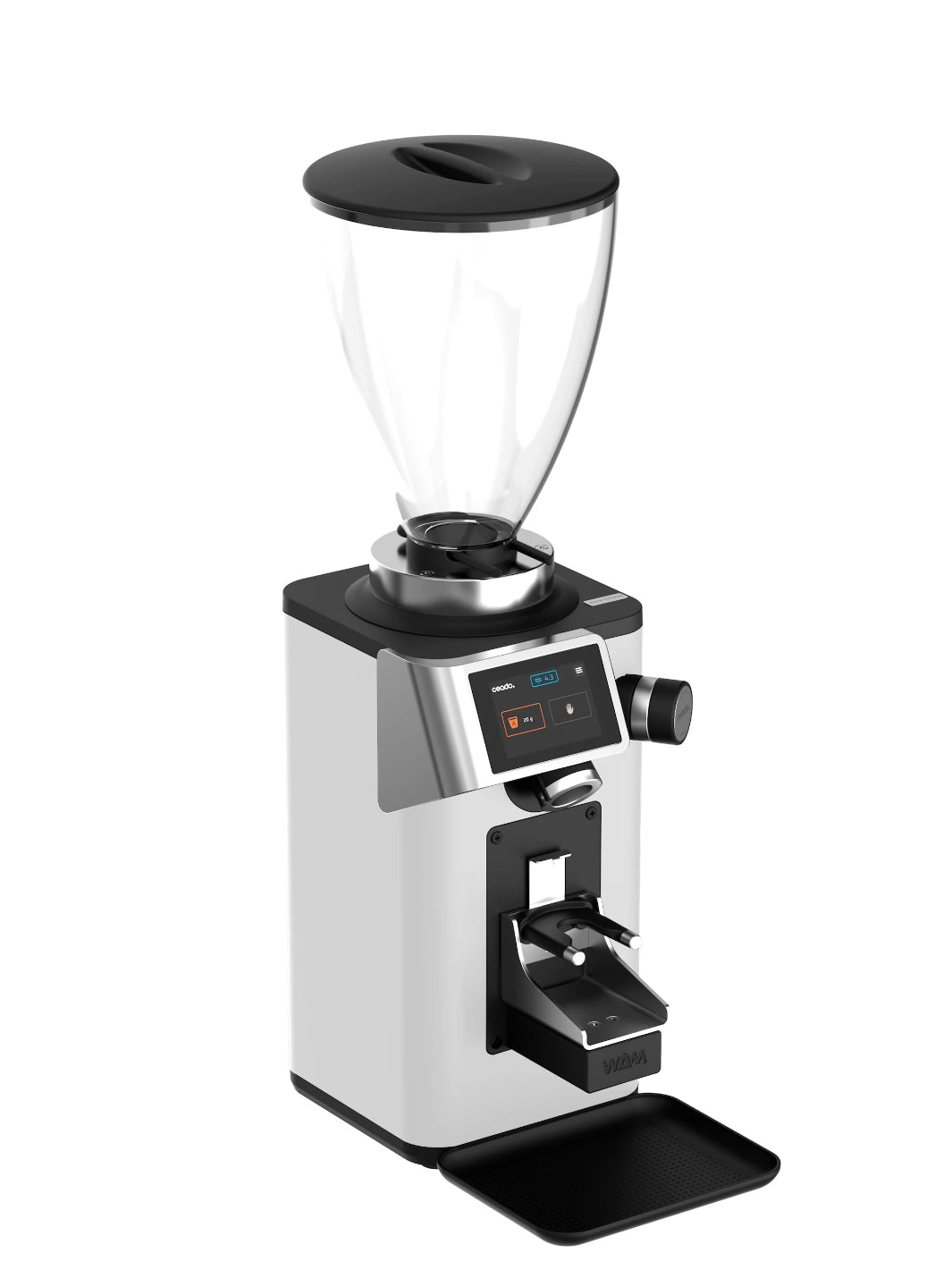

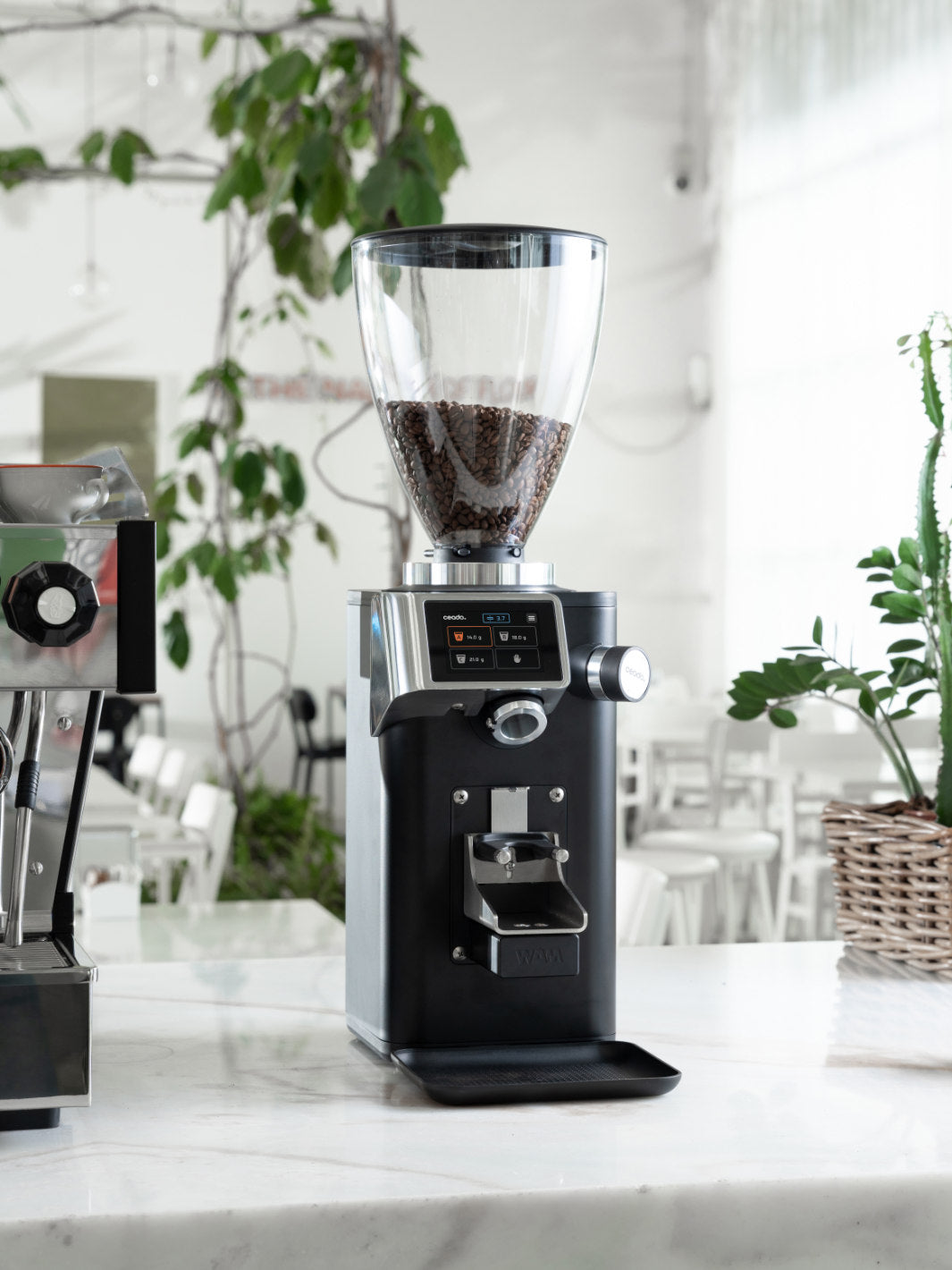

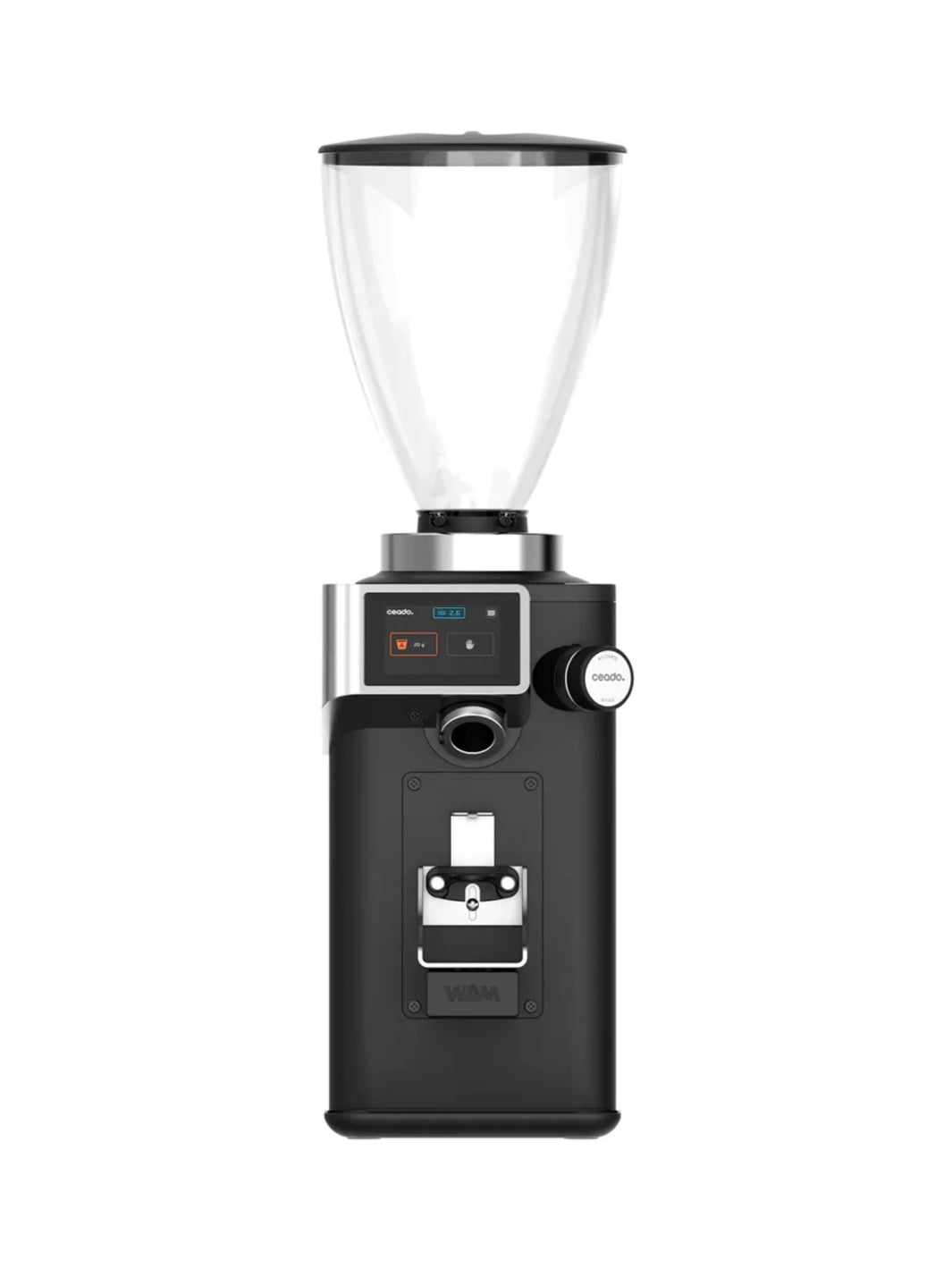

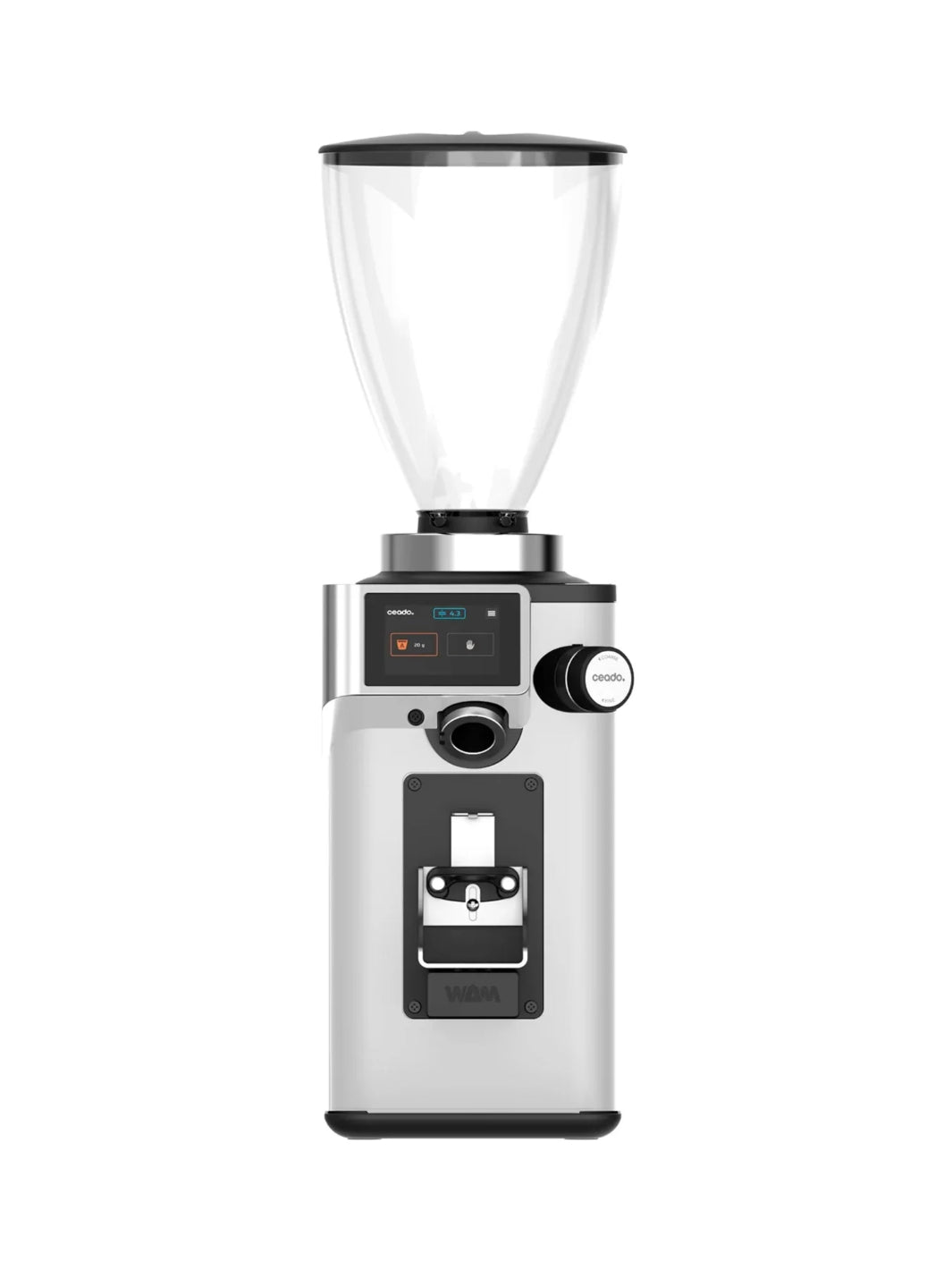

CEADO Rev Titan Espresso Grinder (120V) (⌀83mm) (w/ WAM Module)

• Description
• Specs
• Method

• FLAVOUR CONSISTENCY AT HIGH SPEED

  The ideal grinder for high-volume environments, enhancing body perception even in milk-based drinks, the Ceado Rev Titan Espresso Grinder excels at grounds temperature stability, weight precision and maintaining the set particle size distribution.

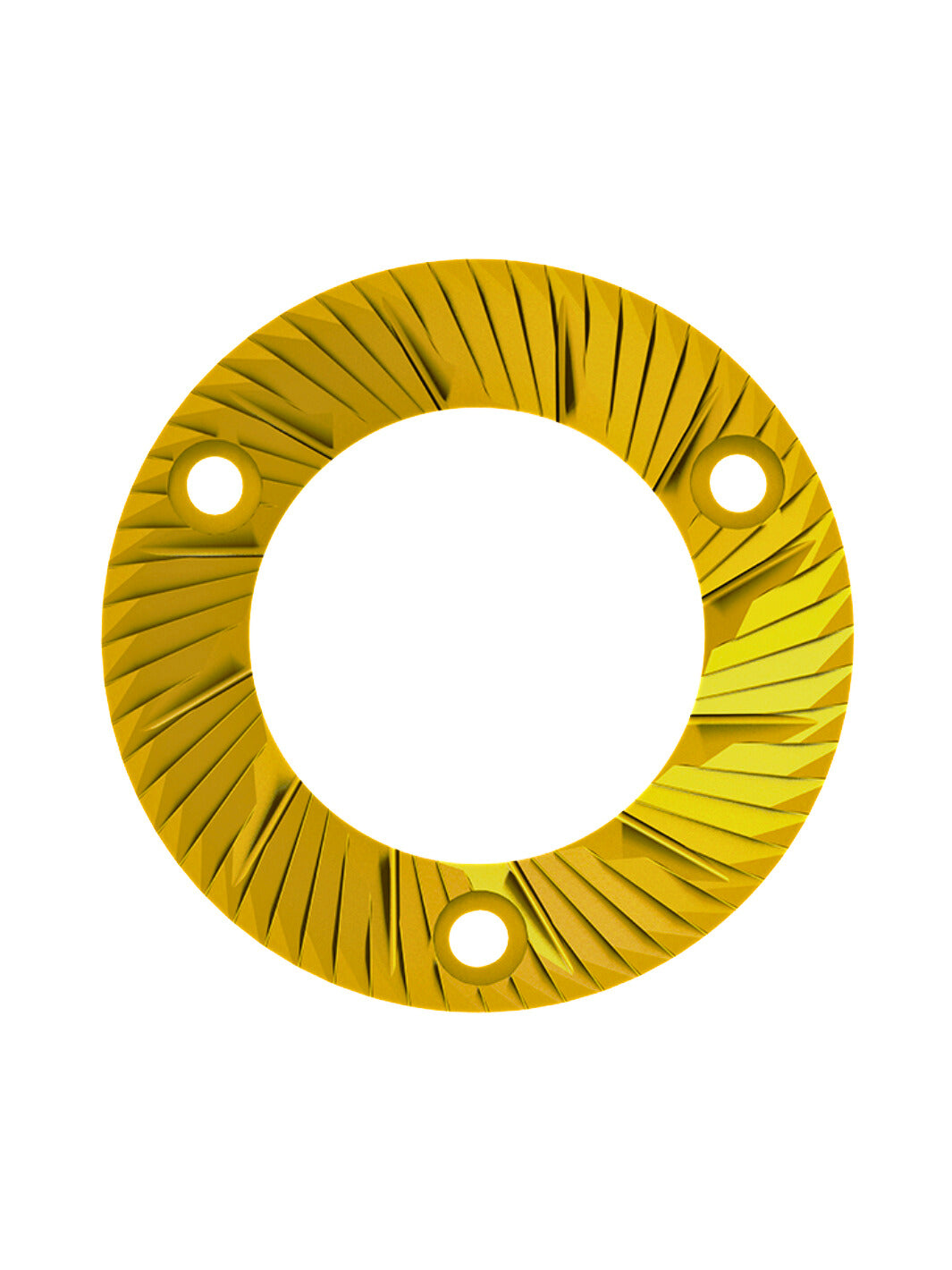

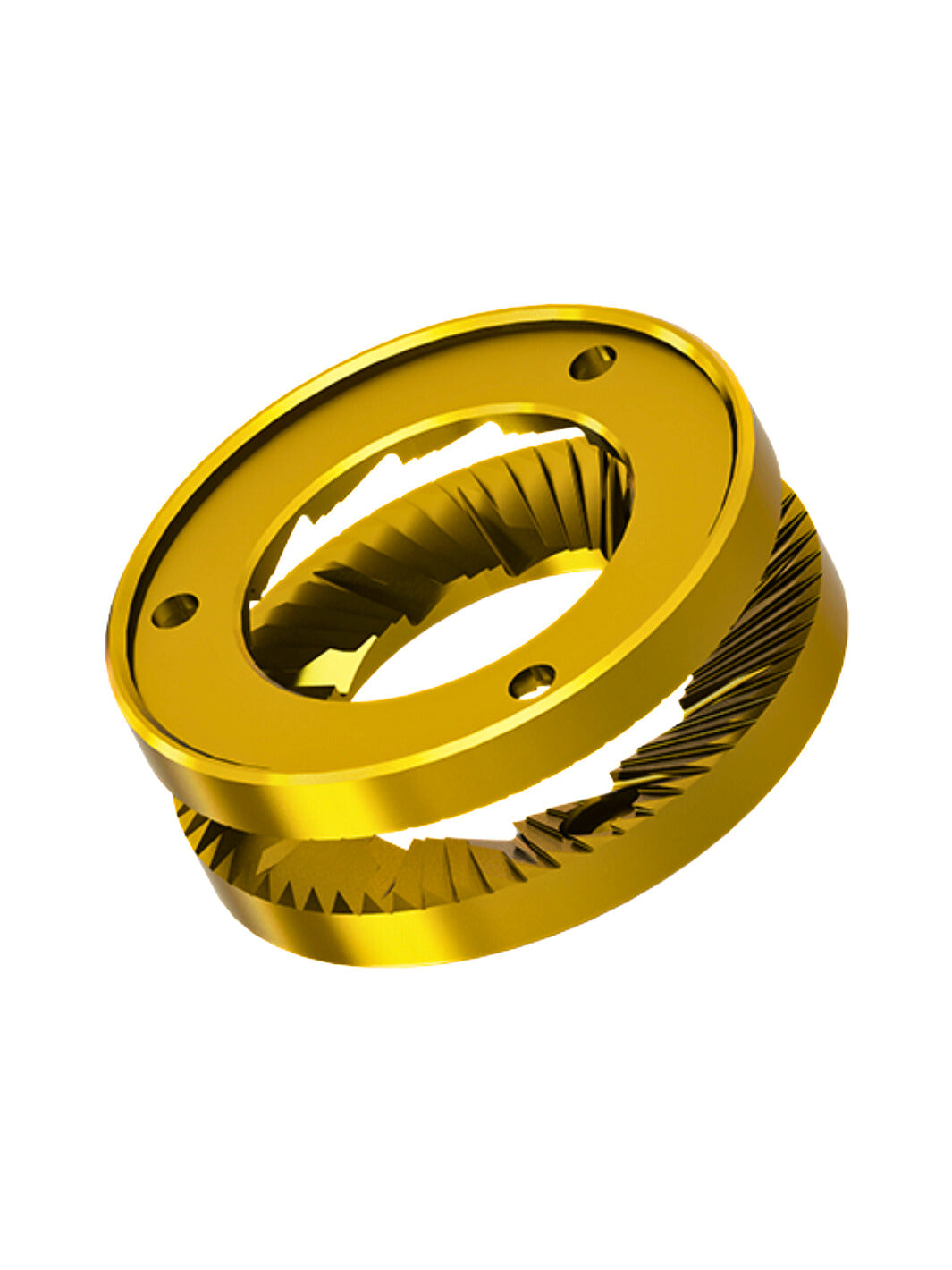

  ⌀83mm Titanium Nitride (TiN)-Coated Burrs
  The Rev Titan's high-productivity, ⌀83mm TiN-coated burrs have an estimated lifespan of 2.5 tonnes (2.75 tons).

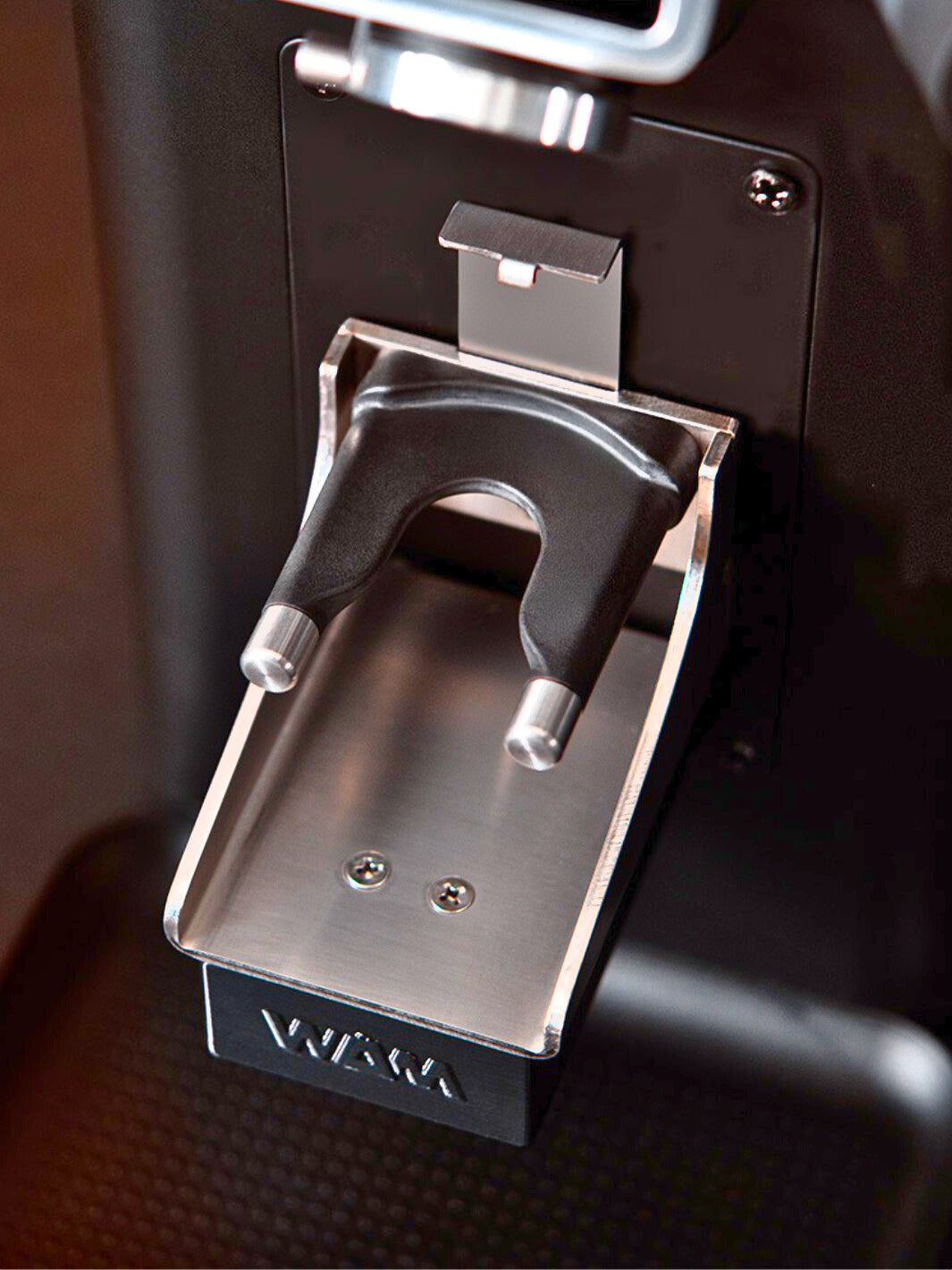

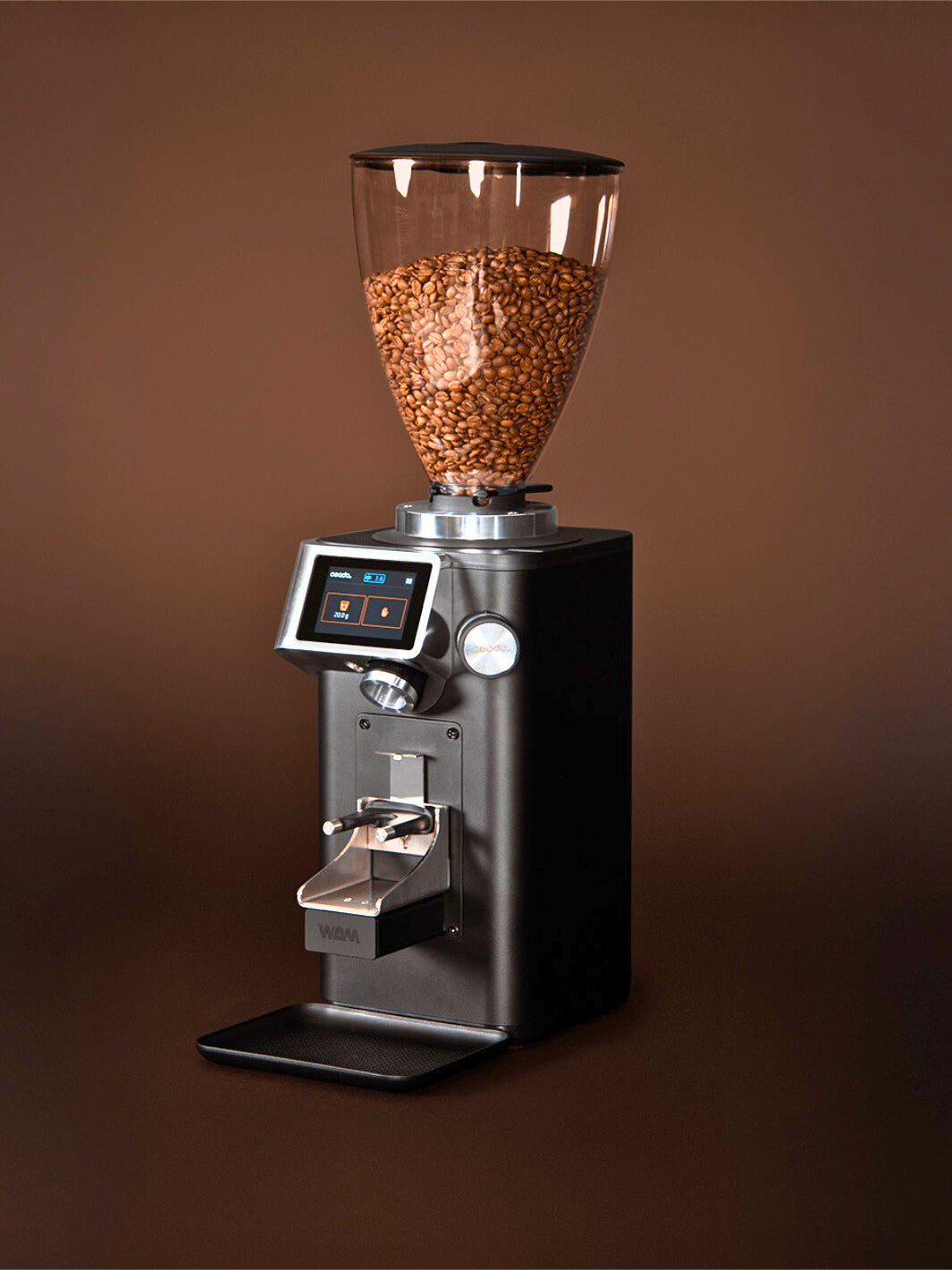

  Weight Adjustment Module (WAM)
  Consistent weight aids in building and monitoring flavour recipes. The Rev Titan comes with a WAM installed, however an interchangeable Portafilter Activation (PFA) module is available separately and can be mounted in under two minutes, even post grinder installation.

  Steady Lock System
  The Rev Titan features a counteracting system that expands in the opposite direction of the burrs, neutralizing the effect of heat expansion and maintaining a constant distance between the burrs. This ensures a consistent particle size at any pace, preserving the same flavour profile.

  Grounds Temperature Management
  Because stable and low coffee grounds temperature is key for consistent flavour extraction, the Rev Titan has the following features to manage grounds temperature:

  • a 2.5kg (88.18oz) heat sink around the burrs to constantly remove large amounts of heat
  • a shaft that separates the burrs from the motor to prevent heat transmission
  • ample insulation to prevent heat transmission through the shaft
  • active internal airflow management to support temperature stability at any pace

  Noise Reduction
  Excessive noise can negatively impact any environment. The Rev Titan has the following features to prevent vibration transmission and excessive noise emissions:

  • a 2.5kg (88.18oz) grind chamber for higher noise insulation
  • rubber rings to reduce noise propagation
  • the motor separated from burrs to prevent vibration transmission
  • the motor mounted on suspension system reduces vibration emission

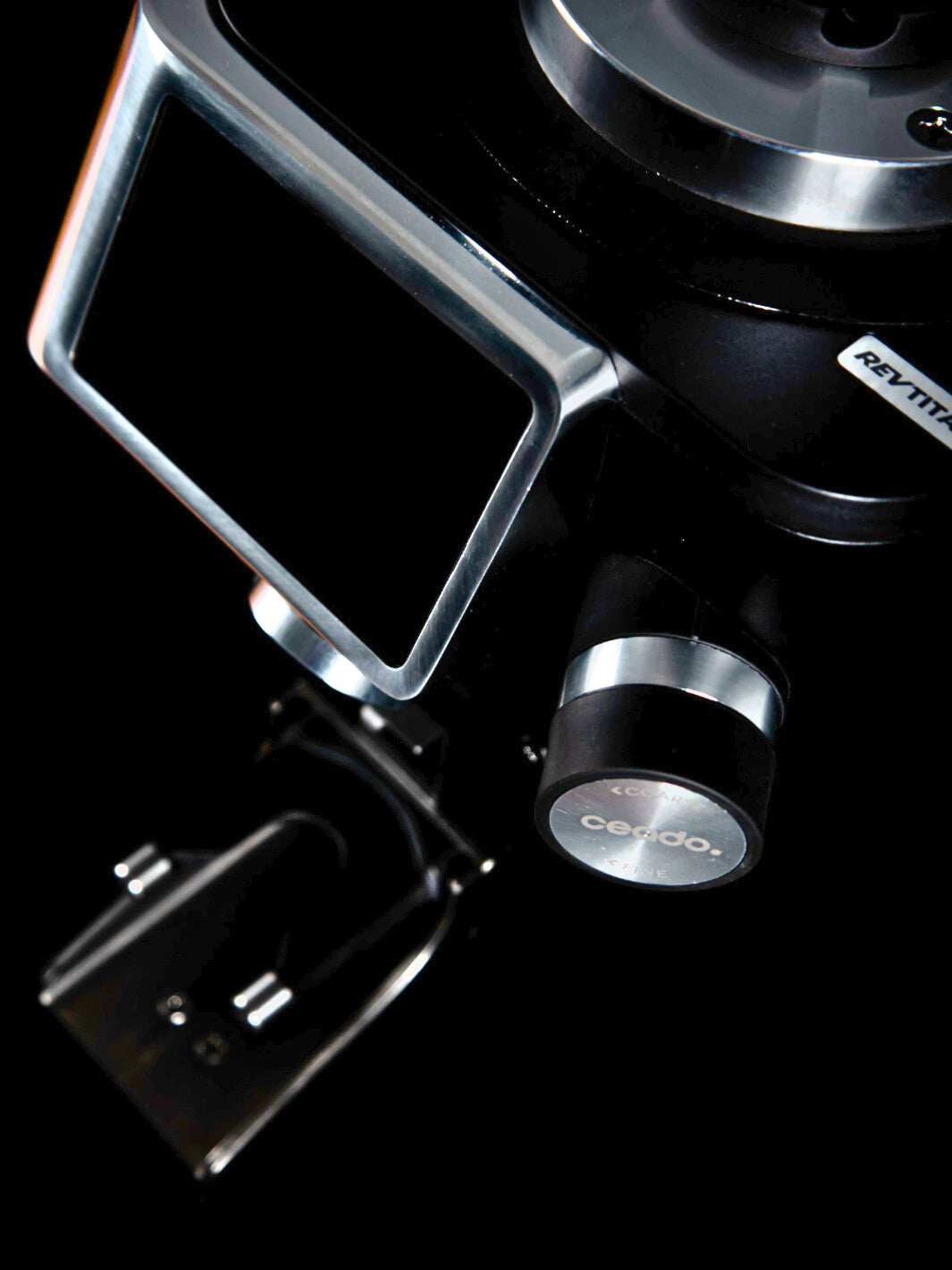

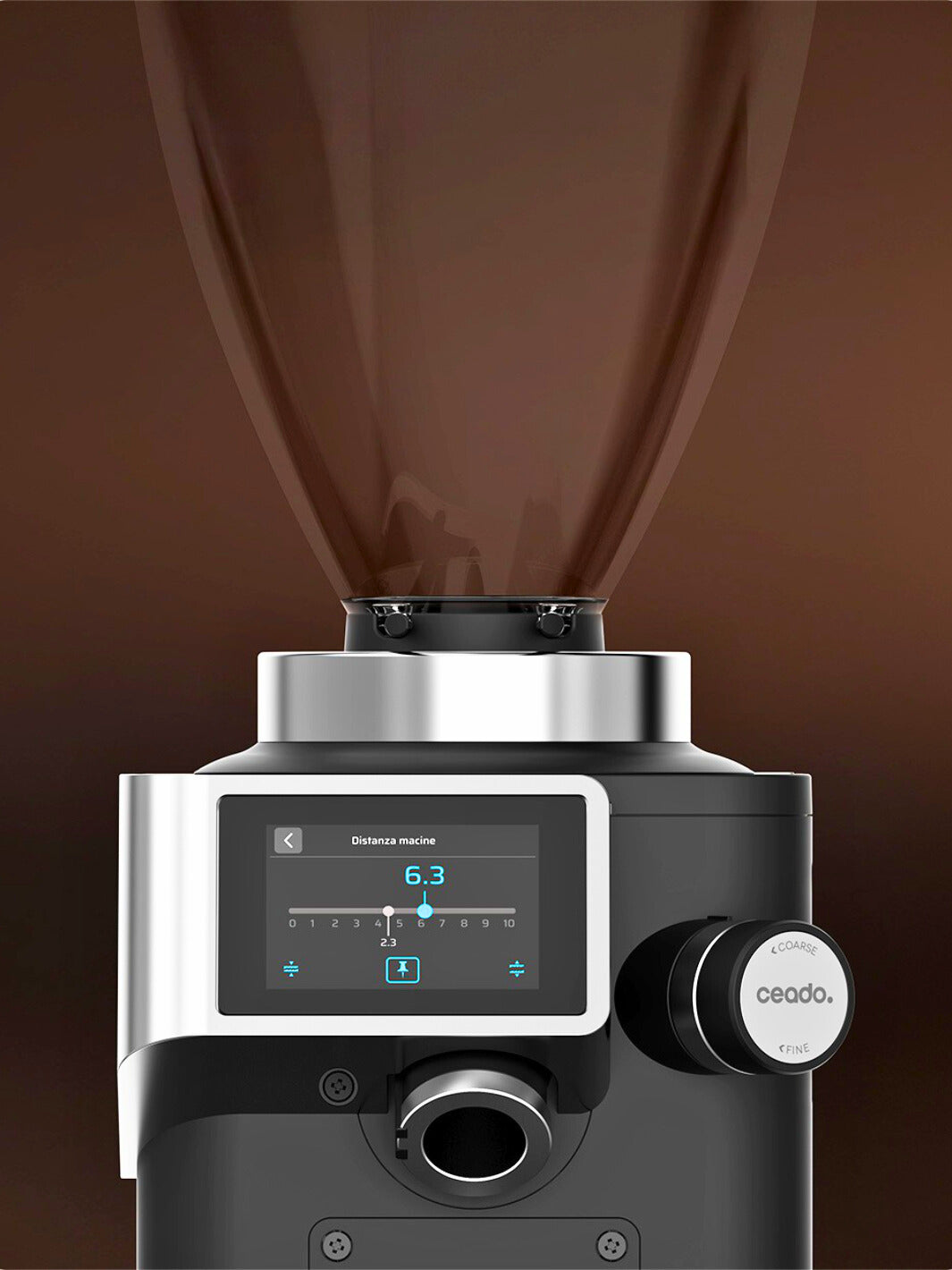

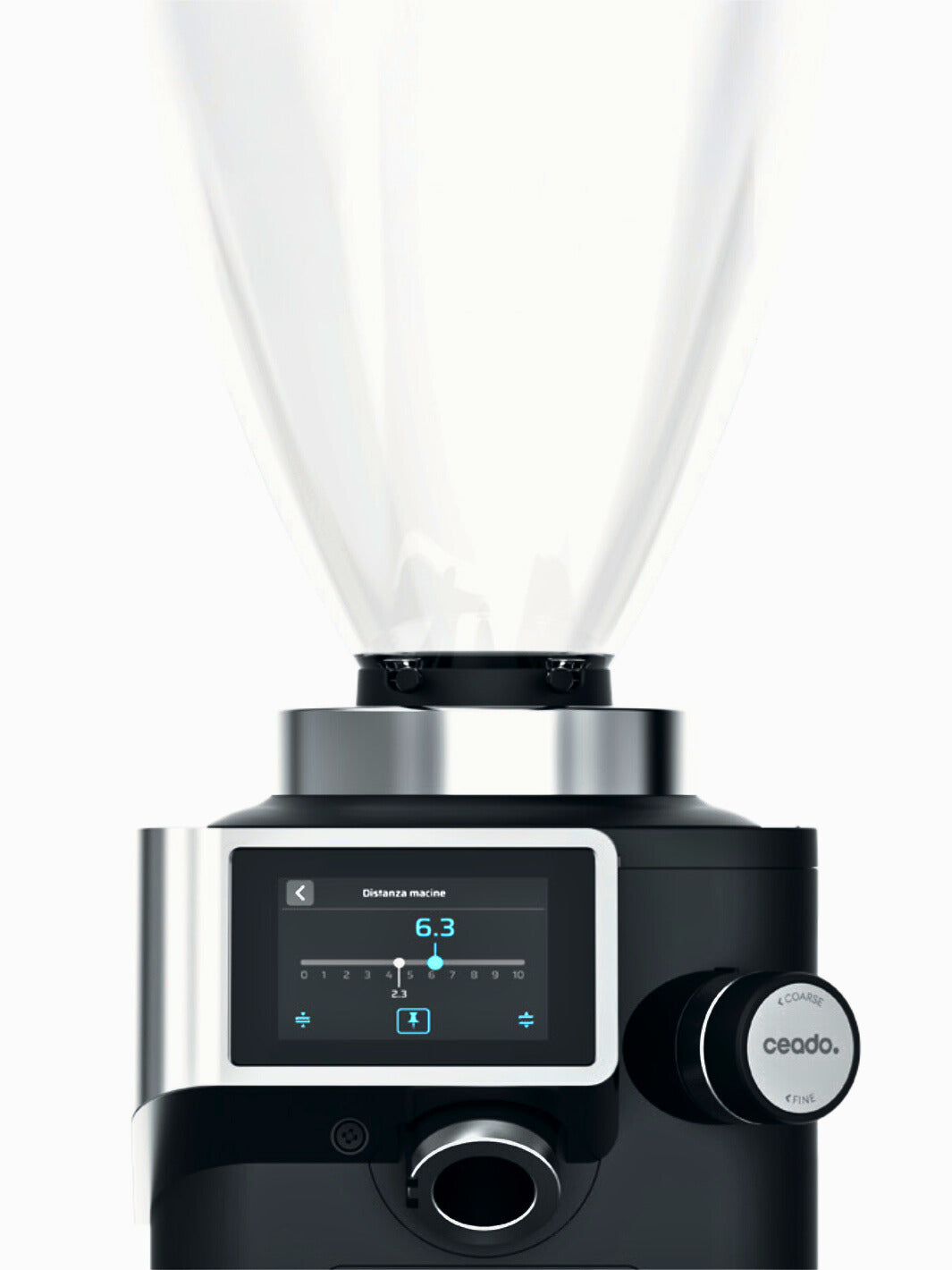

  Advanced Leveling Intelligent Grinding Nexus (ALIGN)
  High-precision stepless adjustment with a digital display for intuitive and quick reading of the grind setting.

  Cleaning Has Never Been Easier
  Since it takes only three screws to remove the top of the grind chamber, the Rev Titan makes it easy to clean and inspect the burrs, with no grind re-adjustment needed after cleaning.

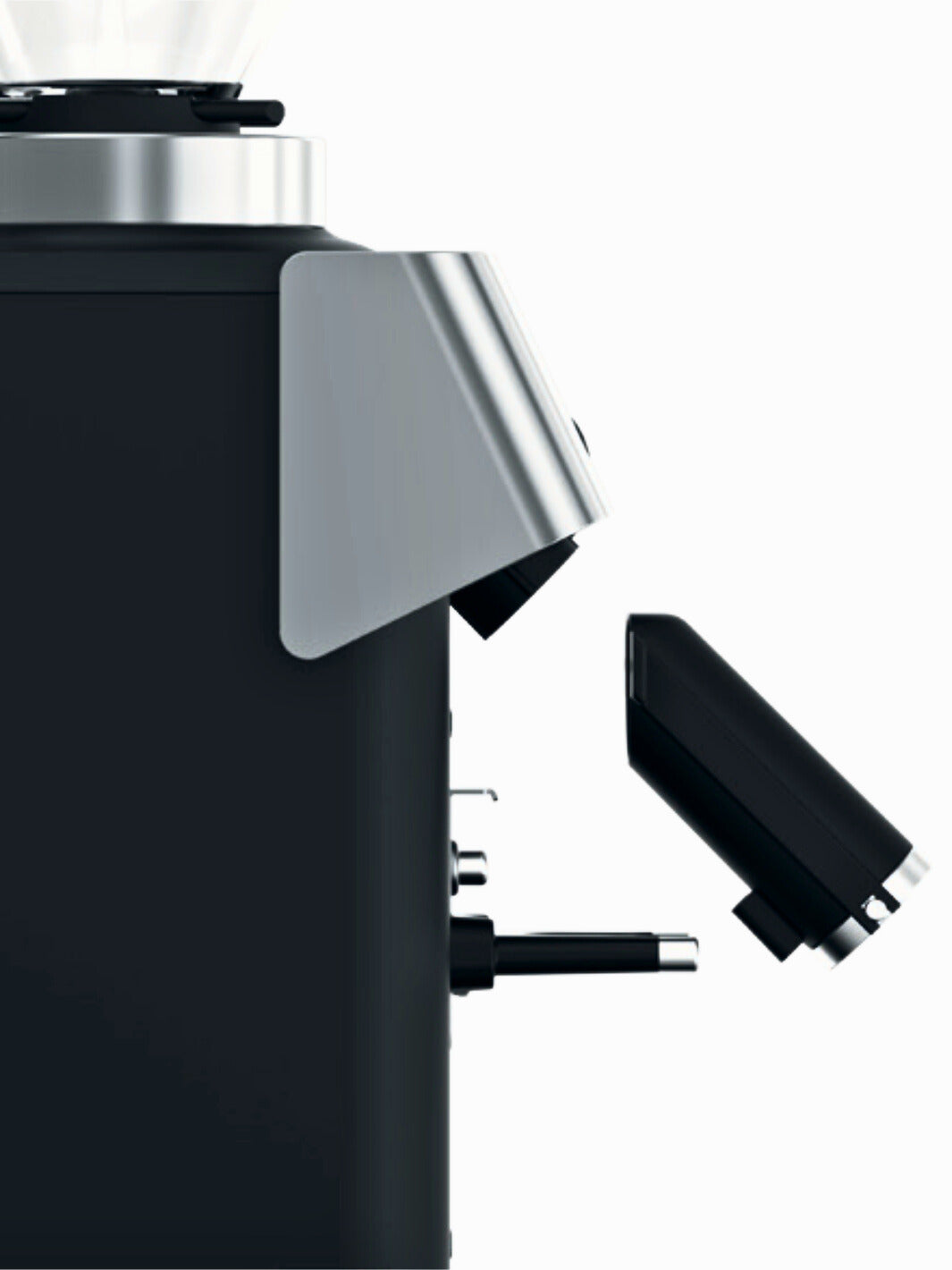

  Removable Chute
  It only takes few seconds and a screwdriver to loosen the safety screw and remove the chute for cleaning. Putting it back is just as easy with four guides that quickly bring the chute back to the correct position with no chance of error.

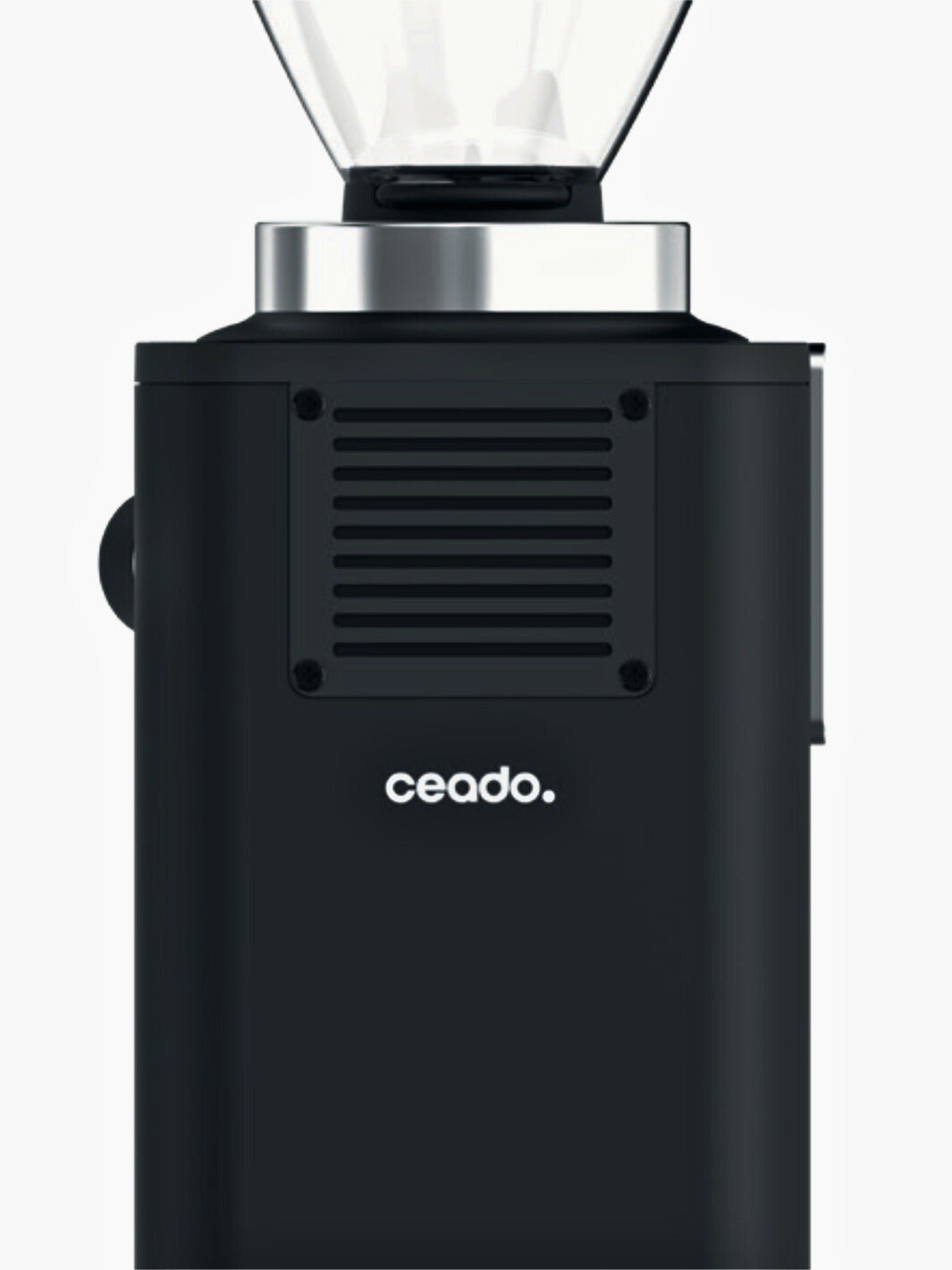

  Removable Air Filter
  To prevent dust and dirt entering the inner parts of the grinder, an air filter is installed behind the air suction grid. A cleaning reminder periodically appears on display.

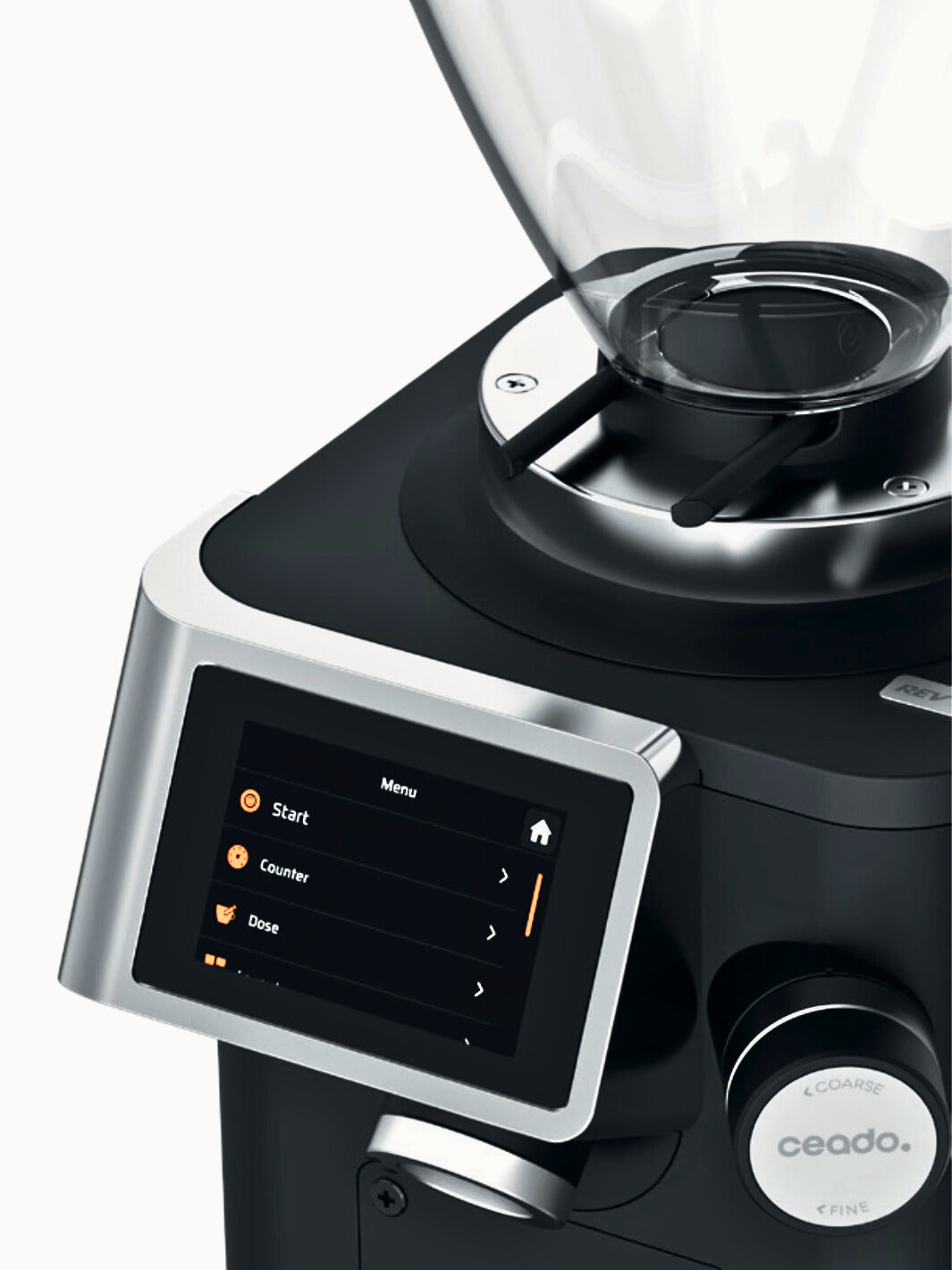

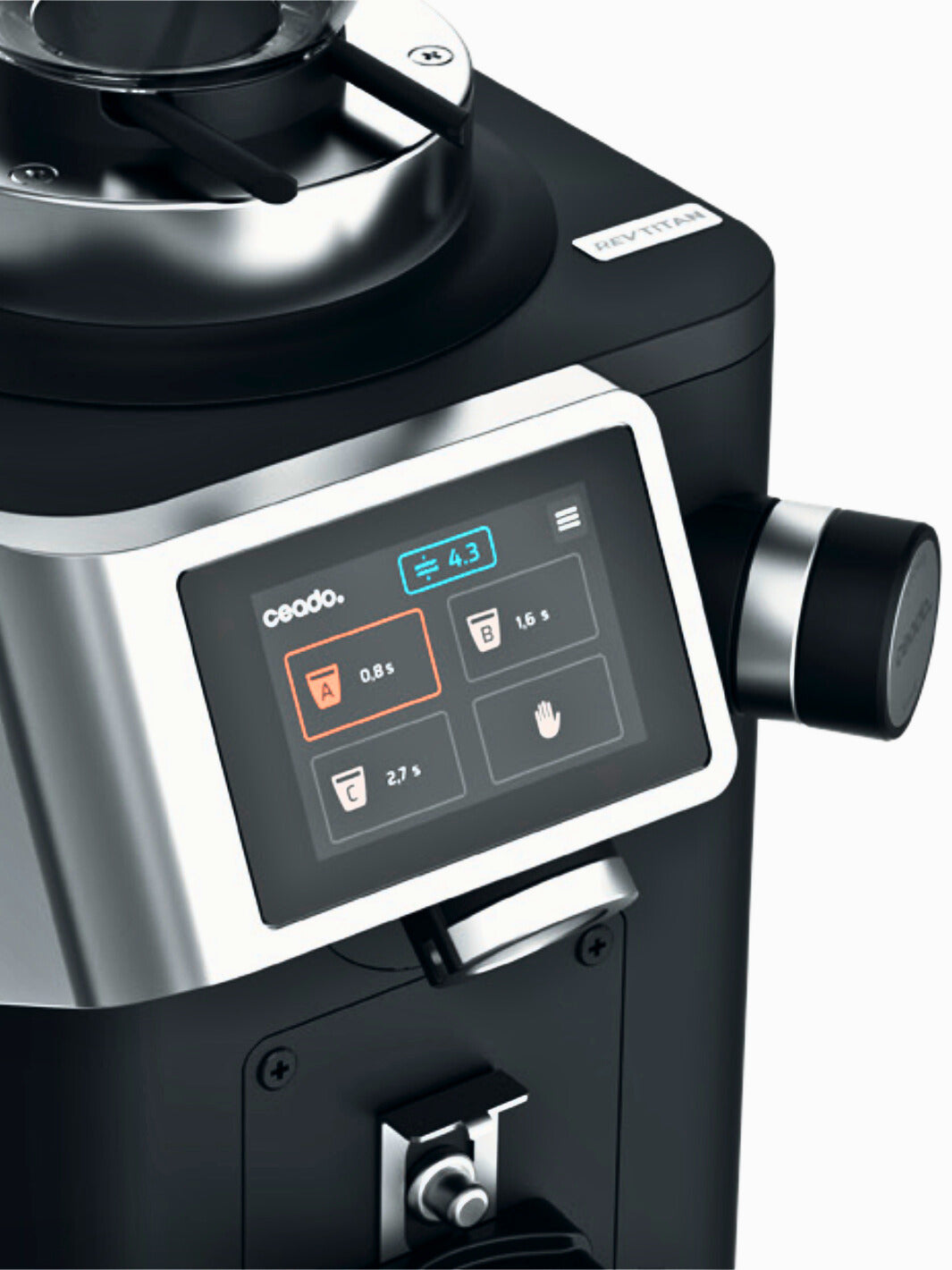

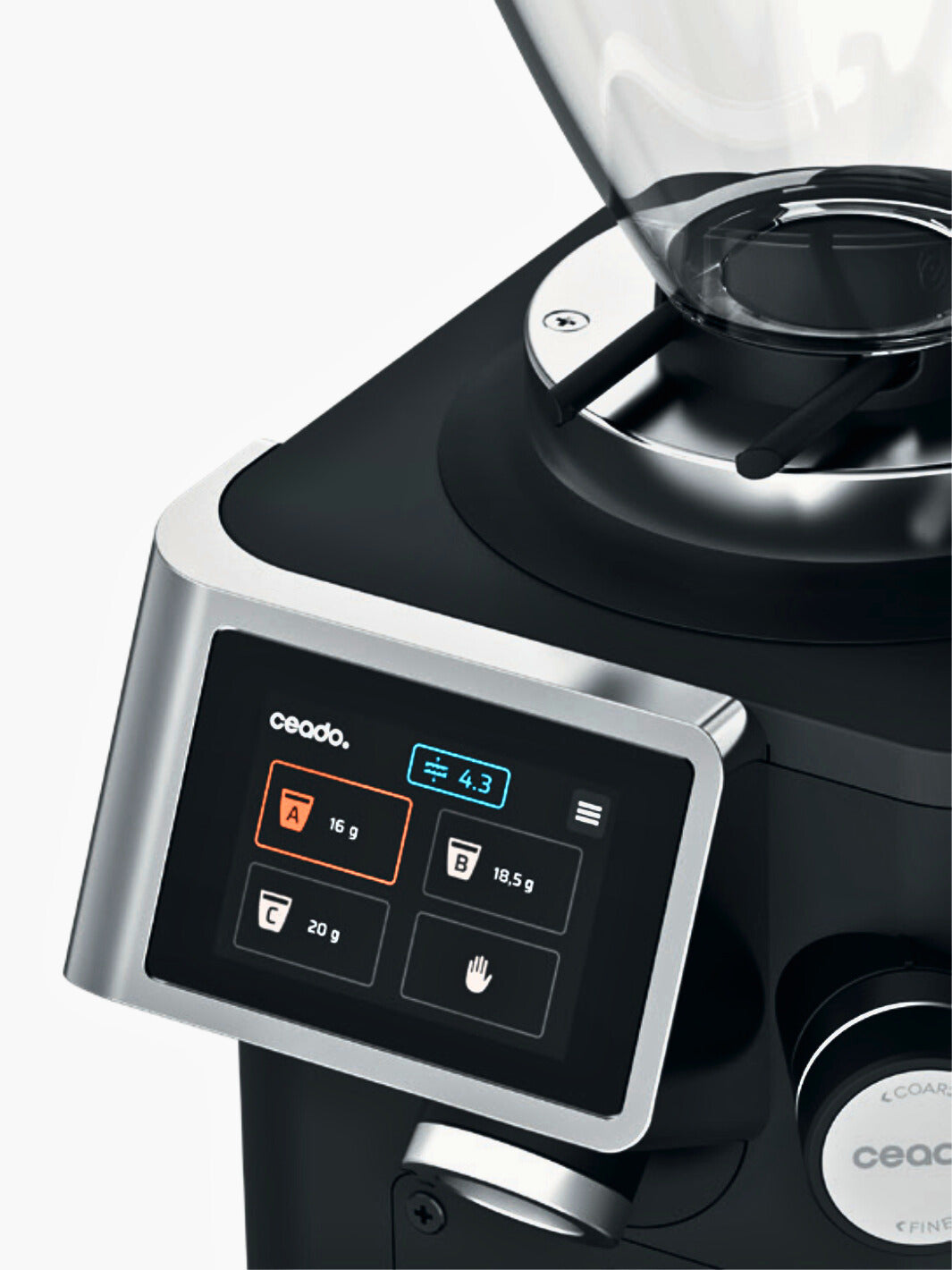

  User Interface
  The user interface is designed to be state-of-the-art, ensuring intuitive use for all and features a customizable dose layout, programmable air flow, maintenance alerts, five grinding activation modes, and a comprehensive menu of adjustable settings

  With its focus on ground temperature stability, weight precision and maintaining the set particle size distribution, the Rev Titan delivers the same flavour at any pace.
• • ⌀83mm (⌀3.3in) Stainless Steel Flat Burr Set with Titanium Nitride (TiN) coating
  • Hopper Capacity: ~1600g (~56.44oz)
  • Dimensions: W200mm x L270mm x H630mm (W7.87in x L10.63in x H24.8in)
  • Voltage: 110-120V 60Hz/6A
  • Power: 740W
  • Speed (50/60Hz): 1480/1700RPM
  • Average output (g/s) (calculated at standard Italian Espresso Consistency): 5 (50hz) / 6 (60Hz)
  • Dose Setting: Digital with grind reference on display
  • Display: Multifunction Touch
  • Net Weight: 17000g (599.66oz)
  • Gross weight: 18800g (663.15oz)
  • Noise: 67dB
  • Made in Italy

• Use to professionally and precisely grind coffee.

  CEADO Rev Titan Espresso Grinder (120V) (⌀83mm) - User Manual

  CEADO Rev Titan Espresso Grinder (120V) (⌀83mm) - Product Leaflet
